Specifications

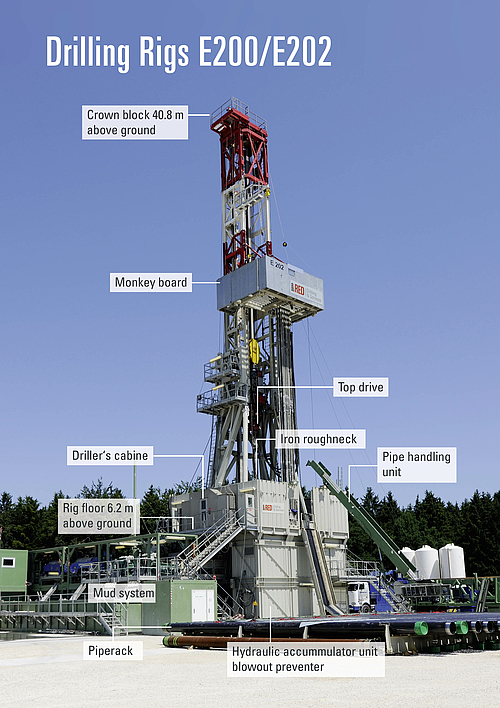

Mast – vertical lift system

Bentec EURO RIG 250:

Rated hookload: 250t

Maximum hookload: 300t

Height: 40.77 m (inc. substructure)

Substructure height: 6.20 m

Reeving: 10 lines

Max. full setback capacity: 3800 m 5“ DP

5.500 m hole depth with 3½“ DP

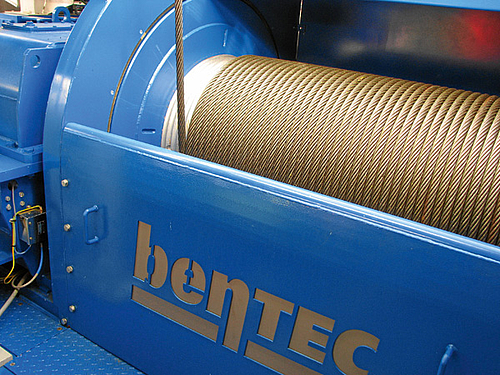

Bentec E 1250 AC

Maritime Hydraulics PTD 500 AC

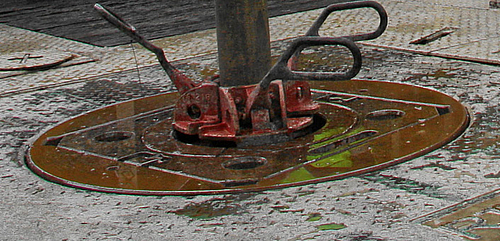

Maximum opening: 27 ½“
Drive: electric
Max. revolutions: 40 rpm

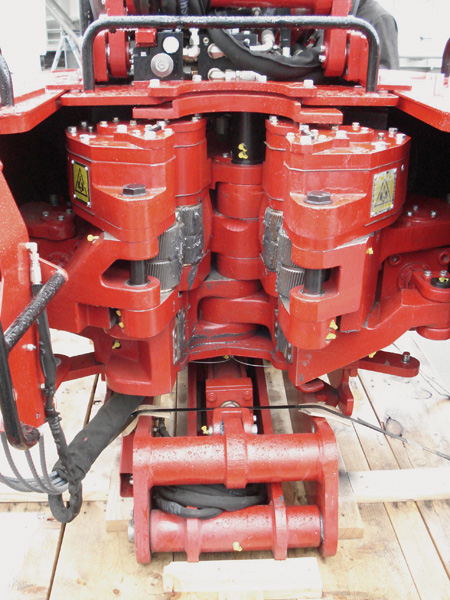

NOV ST-80C

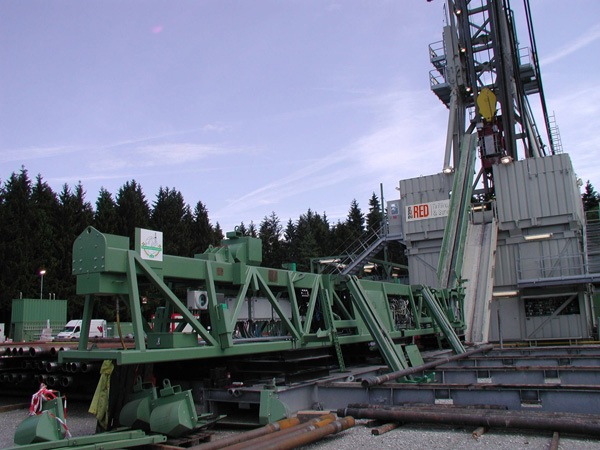

P.U.L.D. 05 series pipe handling

Modular system (8 transport units)

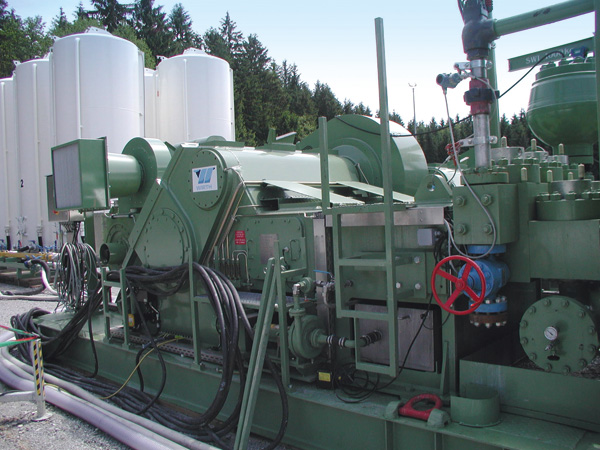

Mud pumps
2 x Wirth TPK 1600 AC

Capacity per pump: 7½“ liner – 2600 l/min at 205 bar
5½“ liner – 1400 l/min at 345 bar

Strokes: 100/min

Max. pressure: 350 bar

Drive: electric (1600 PS)

Mud tanks

100 m³ max. total Volume in 8 compartments
Conical tank compartments with agitators
All lines and valves mounted outside the compartments, no baffles in the compartments
Integrated triptank, poor boy- and vacuum degasser
2 x Cutting Container (35 m³)

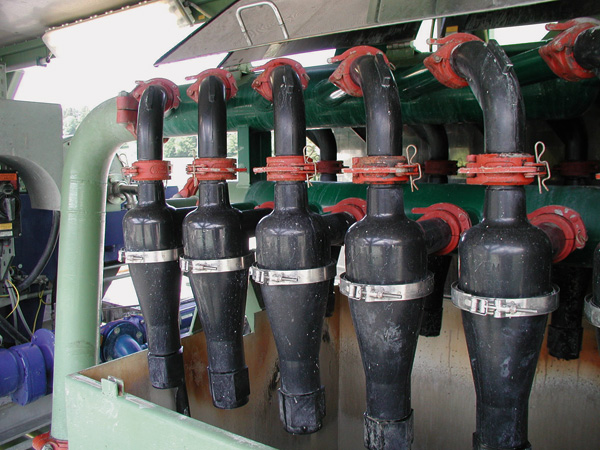

Mud conditioning, solids control

2 x VSM 300 shale shaker, NOV Brandt
1 x Hiller centrifuge with integrated barite recovery
1 x Flottweg centrifuge
Flocculation unit

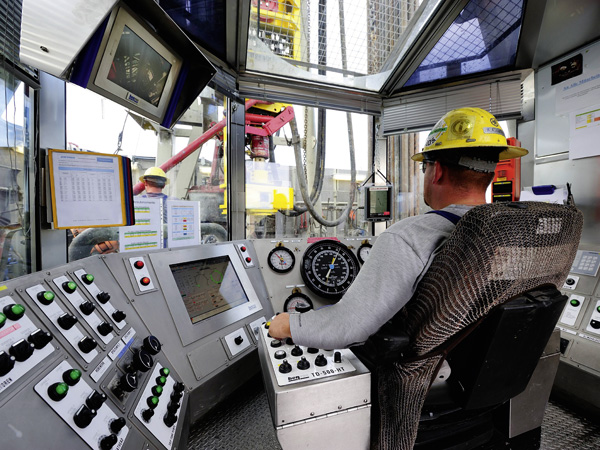

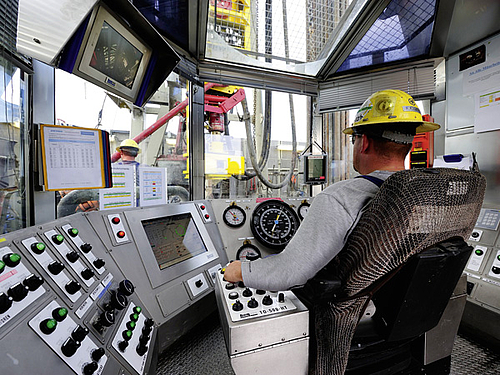

Entire tank system automated, remotely monitored and visualised on a process control system

Modular Generators (6 units to minimise power use)

6 x 532 kW diesel generators
Option: replacement of 3 x 532 kW diesel generators by 3 x 410 kW CNG-driven generators
